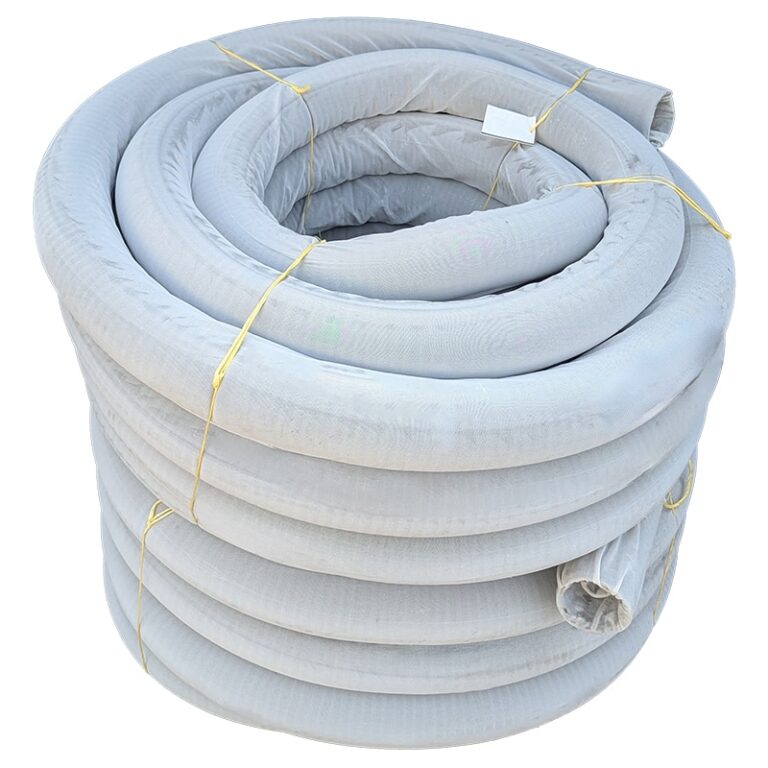

Goldline® drain tile is a soil-tight, high-density polyethylene plastic pipe.
Goldline® single-wall pipe is available in perforated (slots), drilled (holes), or non-perforated configurations and is supplied with a high-performance geotextile fabric sock.
Features
- Size: 3″ to 12″ inside diameter
- Lightweight and easy to maneuver for efficient installation.
- Meets or exceeds ASTM F667 requirements.
- Available in AASHTO grade to meet or exceed AASHTO M252 or M294 requirements.
- HDPE material is completely resistant to rust, corrosion, and deterioration. Available in perforated and non-perforated configurations.
Physical Pipe Dimensions
| Nominal ID in (mm) | Approximate OD in (mm) | Corrugation Pitch in (mm) | Min. Pipe Stiffness @ 5% Deflection psi (kpa) |
|---|---|---|---|
| 3 (75) | 3.6 (91) | 0.67 (17) | 30 (210) |
| 4 (100) | 4.7 (119) | 0.67 (17) | 30 (210) |
| 5 (125) | 5.7 (145) | 0.67 (17) | 30 (210) |
| 6 (150) | 7.0 (178) | 0.8 (20) | 30 (210) |
| 8 (200) | 9.3 (236) | 1.0 (25) | 30 (210) |
| 10 (250) | 11.9 (302) | 1.3 (33) | 30 (210) |
| 12 (300) | 14.6 (371) | 2.0 (51) | 30 (210) |
Installation
Pipe and fittings shall be installed in accordance with ASTM D2321 or ASTM F449 and the manufacturers’ installation guidelines. The minimum cover for AASHTO H-25 loads shall be 12” (300mm), and shall be measured from the top of the pipe to the bottom of flexible pavement or to the top of rigid pavement.
